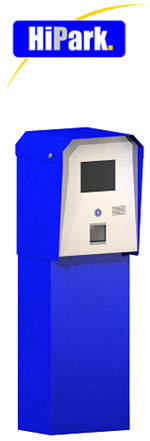

HiPark T30 parking check-in finished unit

Brief description

HiPark T30 is a basic module of the HiPark parking management system for automating business routines for both short-term and long-term parking clients.
HiPark T30 performs the following tasks:

• issuing of electronic tokens with parking check-in date and time recorded into its memory
• parking access control for personal electronic cards


Personal electronic cards are issued by the parking facility's administration for long-term clients after an agreement is signed. The agreement quotes the conditions of use and payment for personal cards.

The standard system routine for short-term clients is as follows:

• At the parking facility entrance the client drives to the check-in unit and presses the token issue button. The button has a backlight to improve visibility. The unit's special sensors prevent the issuing of a token unless there is a car in front of it. After the client presses the button, the date and time are displayed.

• A token is issued into a special token cup. Light and audio signals inform the client that the token is in the cup. The token's memory carries secured information regarding the check-in date, time, and unit ID.
• A signal to open the entry barrier is given after the token has been taken.

The standard system routine for long-term clients is as follows:

• At the parking facility entrance the client drives to the check-in unit and places his/her personal card in front of the front-panel reader.
• The HiPark T30 unit checks the validity of the card, writes a special entry mark into the card's memory, and opens the entry barrier. The parking ID and expiry date and time are verified.

Basic features

	wireless reading of electronic information — reliability is not affected by moisture, contamination on the token's surface or scratches
	the possibility of advertising banner show— an embedded transflective high resolution display ensures excellent information visibility even in poor light conditions at twilight or under direct sunlight
	voice notifications automatically give troubleshooting advice
	token issuing button backlight – no need to waste time finding it at night
	token cup backlight – prompt to take a token from the token cup to drive in the parking area
	narrow chassis – leaves more space for the traffic lane where the traffic island narrows
	rust-resistant metal chassis – all external metal parts are made from either stainless or hot-galvanized steel, ensuring the units look tidy even if there are deep surface scratches

Basic specifications

Hopper volume	up to 1700 tokens
Average token issuing time	1 sec.
TFT display size and resolution	8.4'', 800x600px
Power supply	220VAC, 50Hz
Power rating (max)	50W
Unit dimensions (W х H х D, mm)	415 х 1275 х 325
Basement profile (W х D, mm)	400 х 260
Operating temperatures	-20ºС...+50ºС
